 Post subject: Platework made easy
PostPosted: 20 Aug 2011, 20:58
Offline
BDCA Member

Joined: 05 Jan 2011, 11:27
Posts: 31
So, traditionally plate work has been a process of marking out, hacksawing and plenty of filing.. As you will see from John's Craven this gives some superb results. That is if you're willing to put the time in! Me, I am far too lazy and opt for the use of machines where I can. ;-)

Laser cut parts are really the easiest option but this can take a considerable time to come back.. so I converted my mill to CNC. Now I can design and mill parts in a matter of minutes..

I thought you might like a glimpse at the process..

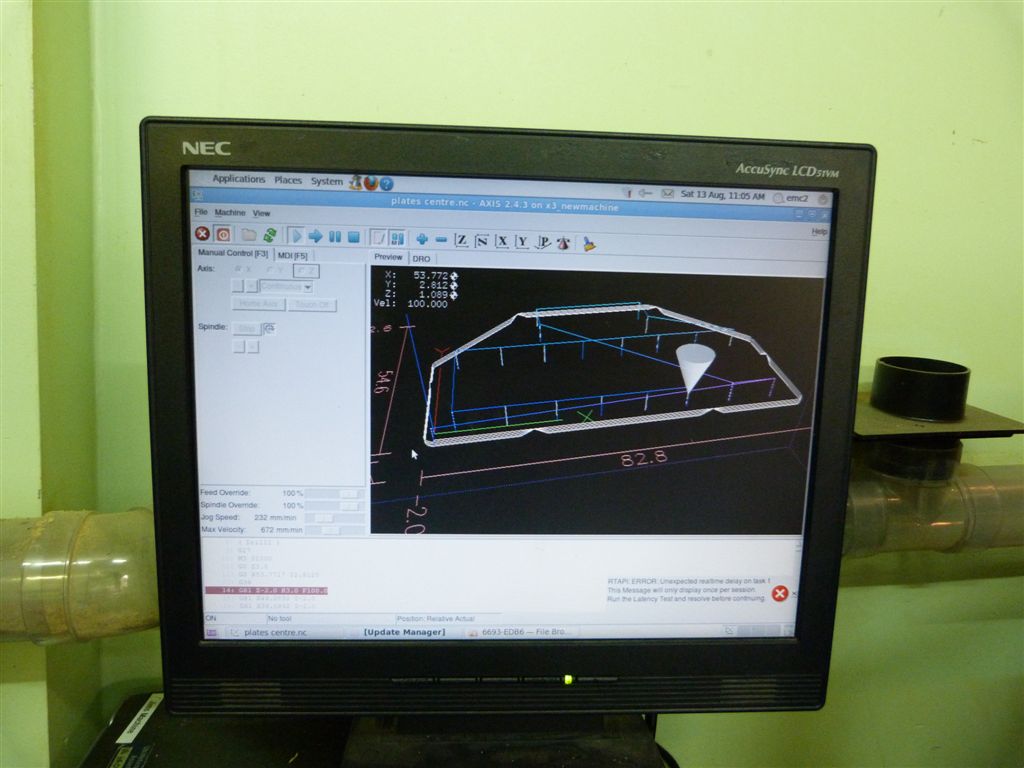

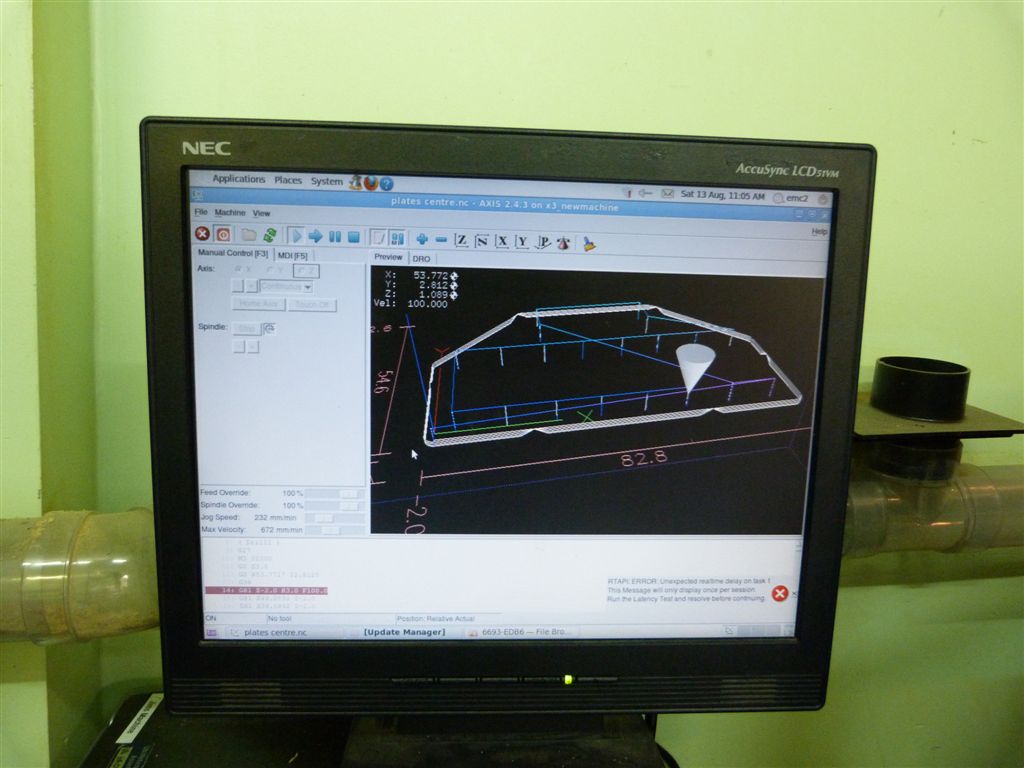

First mount the material and load the drawing
Attachment:
P1010062.JPG [ 93.93 KiB | Viewed 8864 times ]

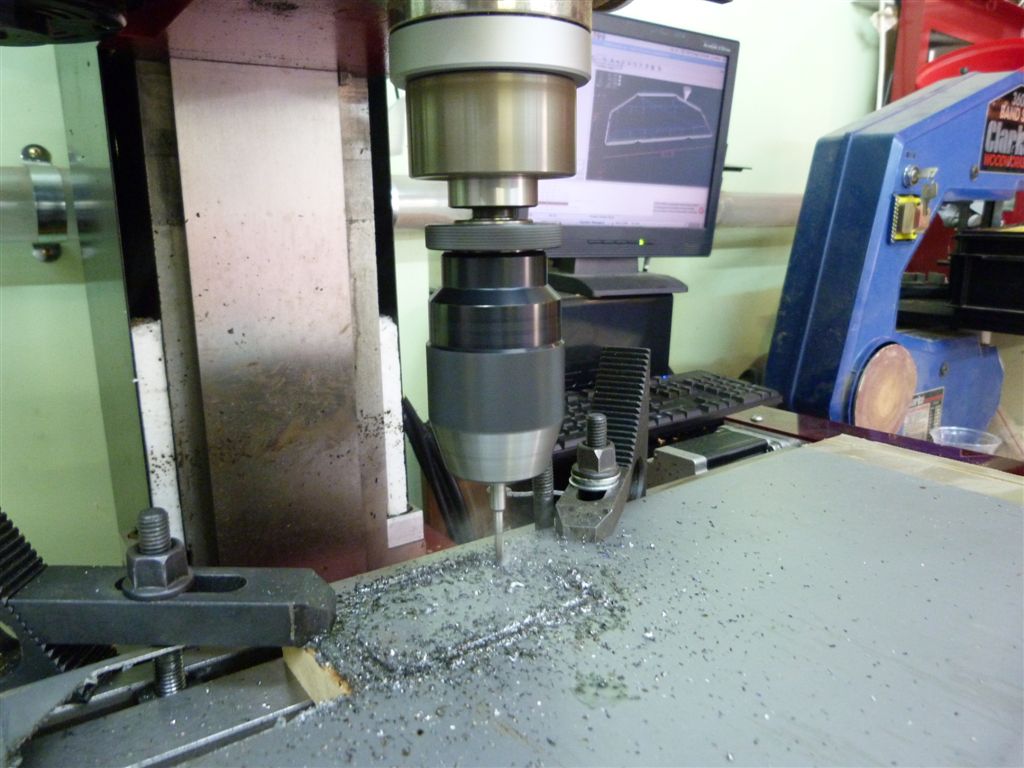

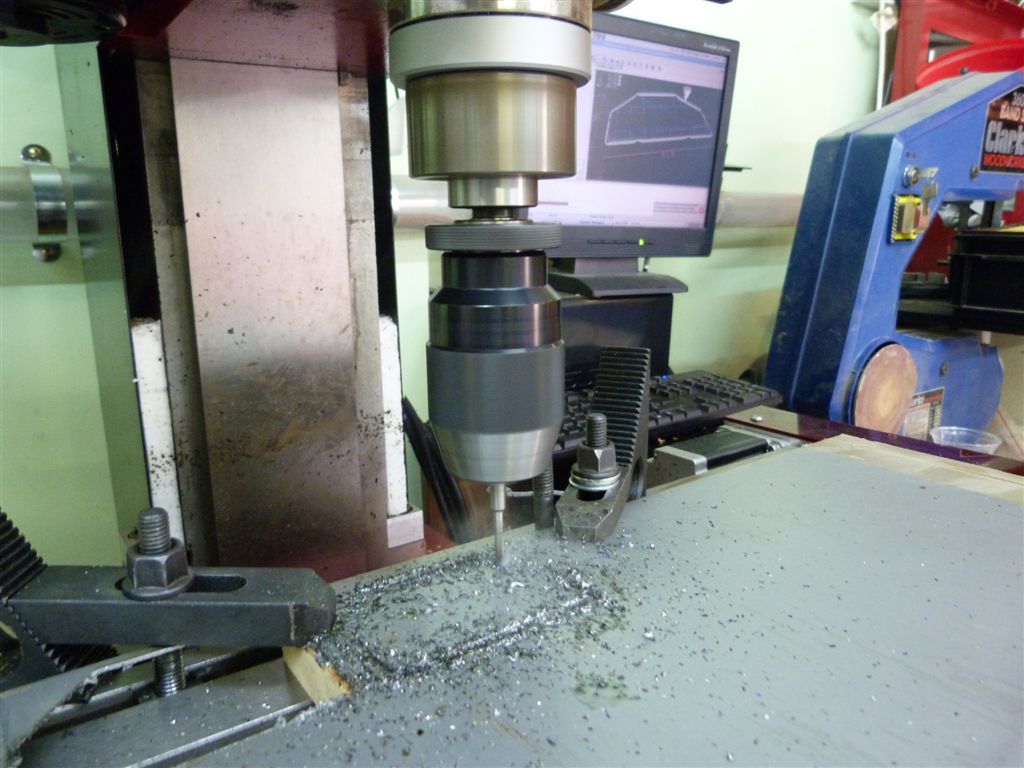

start the drill cycle
Attachment:
P1010064.JPG [ 97.48 KiB | Viewed 8864 times ]


a nice set of holes
Attachment:
P1010065.JPG [ 89.13 KiB | Viewed 8864 times ]

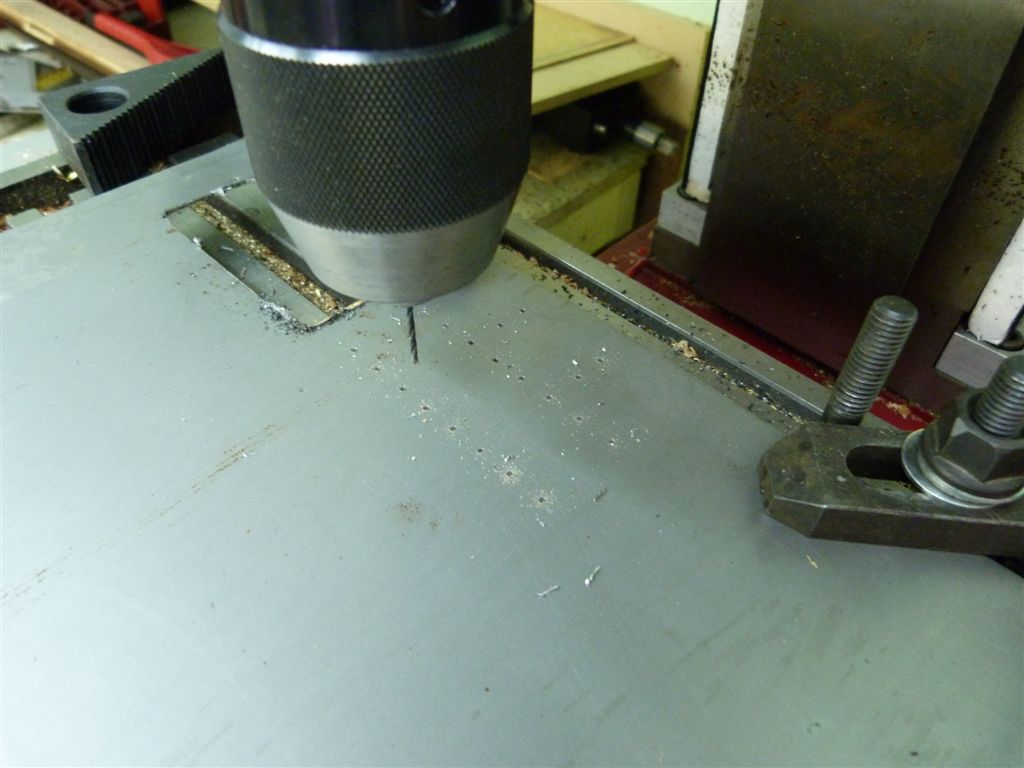

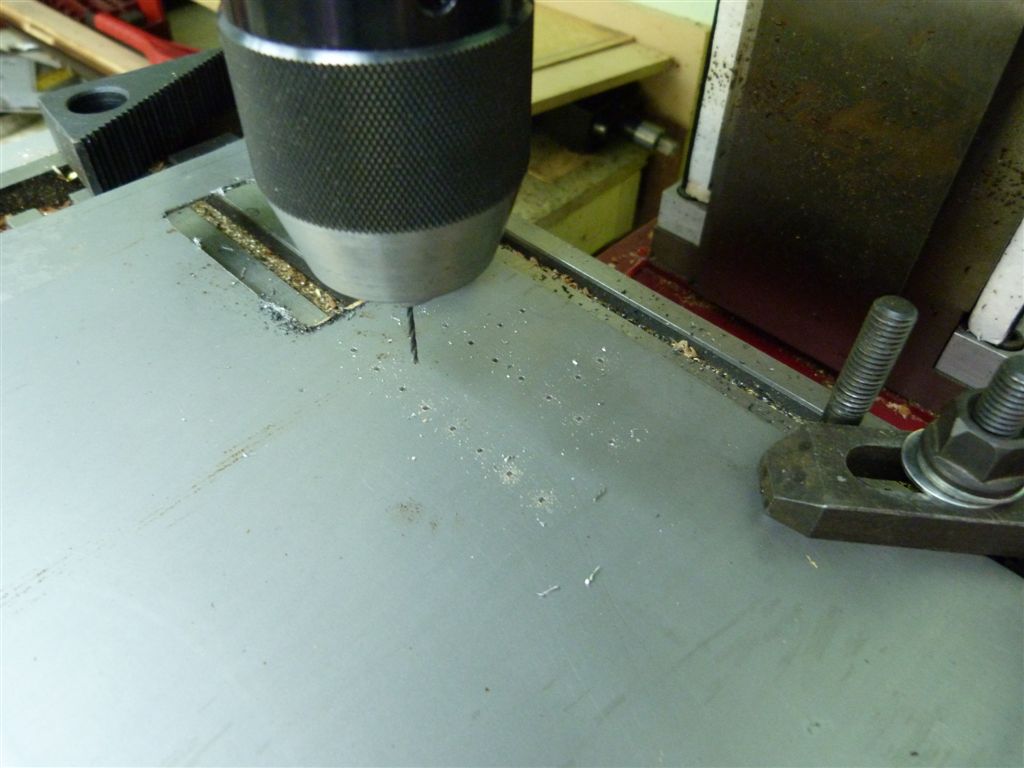

before milling the outside
Attachment:
P1010072.JPG [ 115.69 KiB | Viewed 8864 times ]

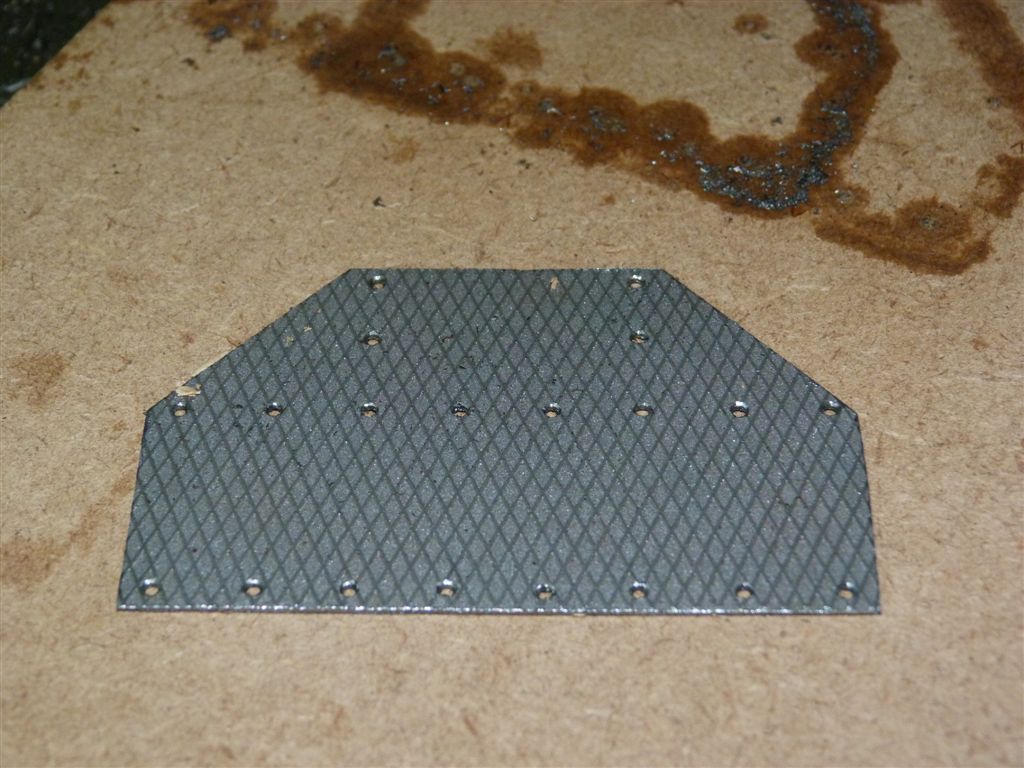

and after a quick file to remove any burrs..
Attachment:
P1010075.JPG [ 134.12 KiB | Viewed 8864 times ]


the machining process took about 10 minutes including tool changes...

cool !!


Top
 Profile

 Post subject: Re: platework made easy
PostPosted: 20 Aug 2011, 20:59
Offline
BDCA Member

Joined: 05 Jan 2011, 11:27
Posts: 31

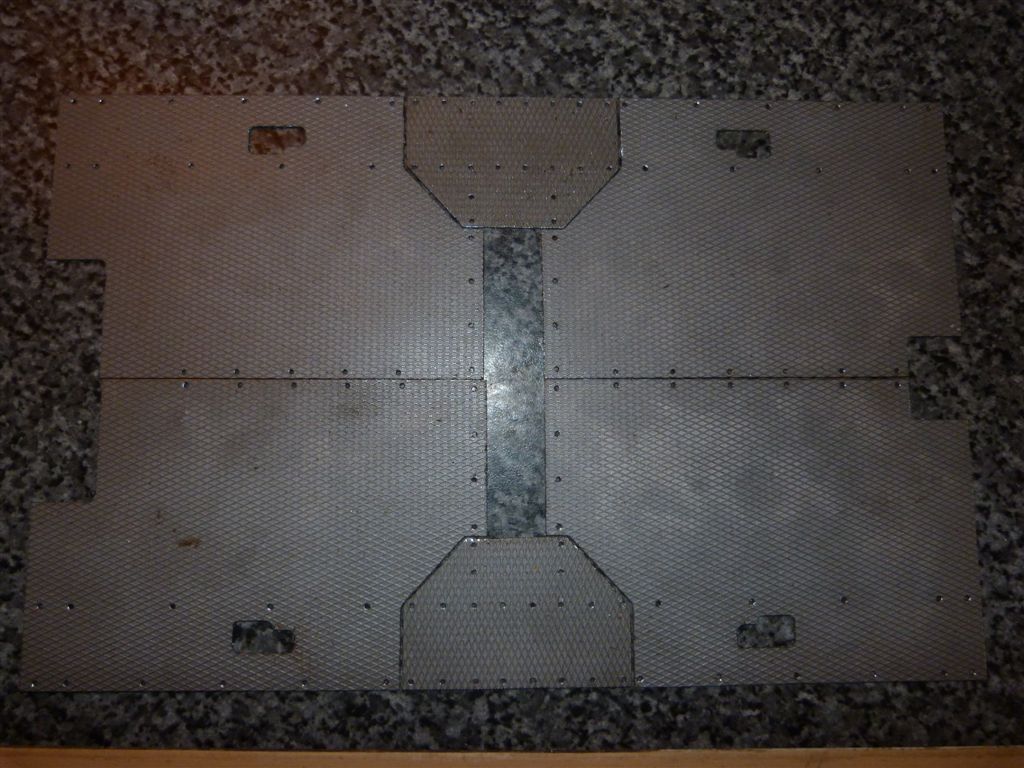

and the final set of plate work, not hard to guess for what ;-)

Attachment:
P1010161.JPG [ 143.62 KiB | Viewed 8863 times ]


Top
 Profile

 Post subject: Re: Platework made easy
PostPosted: 20 Aug 2011, 23:17
Offline
BDCA Member

Joined: 07 Jan 2011, 17:55
Posts: 25
Superb Alex, makes me feel like a dinosaur. John
