 Post subject: Marchwood steam crane
PostPosted: 19 Feb 2013, 22:29
Offline
Registered User

Joined: 19 Feb 2013, 22:13
Posts: 4
Are there any details of the steam crane that was based at the Marchwood Military Railway
I seem to remember it was converted to diesel hydraulic about 1974, not too successfully if I remember correctly.
I was based there for almost 9 years and only remember it being used on two occasions, once to load FV 432s on to flats, and another time when it tipped due to the outriggers sinking into the track bed.


Top
 Profile

PostPosted: 26 Feb 2013, 15:11
Offline
BDCA Member

Joined: 24 Dec 2010, 11:52
Posts: 205
Location: Queens Park, London
Almost certainly a 1944 built Ransomes and Rapier 45 ton crane.

Was it fitted with relieving bogies?
What years are you refering to? I assume mid 70s into mid 80s.

I spoke to a WO called Jez about a decade ago - known to you? However I think the last crane had left before his time.

There is a series of Marchwood photos at the IWM, taken in 1944 with a ten wheel Cowans Sheldon BDC in one of them.


Top
 Profile

PostPosted: 26 Mar 2014, 23:19
Offline
Registered User

Joined: 19 Feb 2013, 22:13
Posts: 4
Got hold of a very poor picture of it after it was converted to diesel hydraulic (attached )
last time I saw it was about 1978 ish,


Attachments:
Marchwood Ex steam crane.jpg
Marchwood Ex steam crane.jpg [ 116.93 KiB | Viewed 6214 times ]
Top
 Profile

PostPosted: 08 Dec 2014, 16:04
Offline
Registered User

Joined: 19 Feb 2013, 22:13
Posts: 4

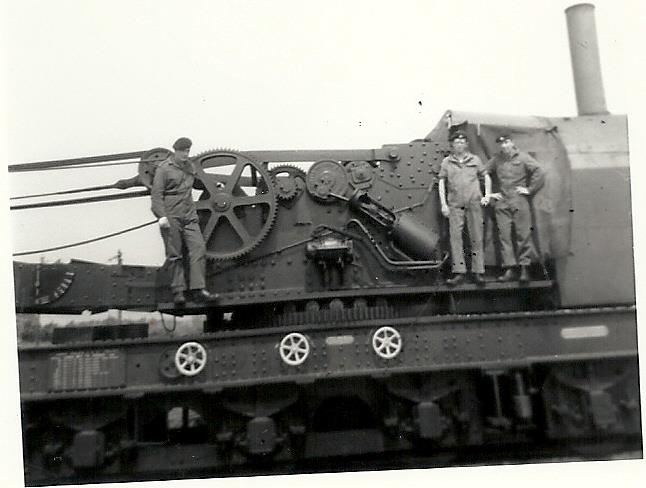

Attachment:
10372549_398658486940391_619326792900723229_n.jpg [ 38.49 KiB | Viewed 5702 times ]

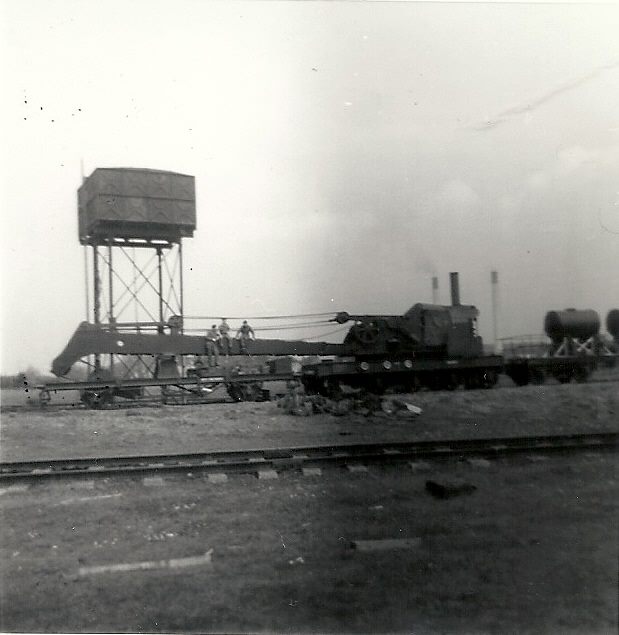

Found a few more.
I'm not sure who took them but I will remove them if needed !


Attachments:
10269619_398658313607075_6164284794136142126_n.jpg [ 44.83 KiB | Viewed 5702 times ]
Top
 Profile

PostPosted: 14 Dec 2014, 14:44
Offline
BDCA Member

Joined: 24 Dec 2010, 11:52
Posts: 205
Location: Queens Park, London
Not Ransomes, but Cowans Sheldon; one of two built in 1942 for the Ministry of Supply.
Steam 30T 6-4W CS 7869 -70/42

Recorded at Longmoor ( 1955 and 1965 ), Marchwood and finally Shoebury as 62007 ( 1981-2; scrapped ca. 1986 ). I do not think that a topple at Shoebury in the 1980s helped its future?

The other went to Austria, ca 1945, and was passed to OBB as 966 300; and is presently stored oou/preserved at Strasshof preservation depot.


Top
 Profile

PostPosted: 17 Dec 2014, 00:28
Offline
Registered User

Joined: 19 Feb 2013, 22:13
Posts: 4
Thanks Chris.
That ties in nicely with the dates that I remember,
